Sulfonic Acid
Table of Contents

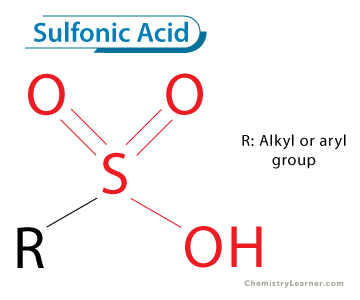

A sulfonic acid, also spelled as sulphonic acid, is a strong organic compound that contains a sulfonic group (–SO3H) attached to an organic group, such as an alkyl or aryl group. Its general formula is R–S(=O)2–OH, where R is any carbon-containing group, from a simple alkyl chain to an aromatic ring. Structurally, a sulfonic acid can be viewed as analogous to sulfuric acid (H2SO4), with one hydroxyl group replaced by an organic substituent. [1-4]
Upon losing a proton, sulfonic acids form their conjugate bases, known as sulfonates (R–SO3–), which are commonly encountered as salts or esters. These compounds play a crucial role in both organic and industrial chemistry. They are used as building blocks for many products, including detergents, dyes, pharmaceuticals, ion-exchange resins, and catalysts. For example, salts of benzenesulfonic acid, such as sodium benzenesulfonate and monoethanolamine benzenesulfonate, are common surfactants in laundry detergents.
Properties [3,4]
1. Structure and Bonding
The defining feature of sulfonic acids is the –SO3H functional group, which consists of a sulfur atom (S) bonded in the following way:
- Two double bonds to oxygen atoms (S=O)
- One single bond to a hydroxyl group (–OH)
- One single bond to a carbon atom of the organic group (R)
2. Geometry
The sulfur atom in the sulfonic acid group adopts a tetrahedral geometry, forming four σ-bonds:
- Two to oxygen atoms through S=O double bonds (which include π-bonds)
- One to a hydroxyl group (–OH)
- One to the carbon atom of the organic group (R)
This tetrahedral arrangement gives bond angles close to 109.5°, typical of sp3-hybridized centers.
3. Acidity
Sulfonic acids are among the strongest organic acids, similar in strength to many mineral acids, such as sulfuric acid. Their high acidity comes from the electron-withdrawing sulfonyl group (R–SO2–) and the resonance stabilization of the sulfonate ion (R–SO3–) after deprotonation.
The delocalization of the negative charge over three oxygen atoms greatly enhances the stability of sulfonic acids. As a result, they are almost completely ionized in aqueous solution, with typical pKa values ranging from -1 to -7.

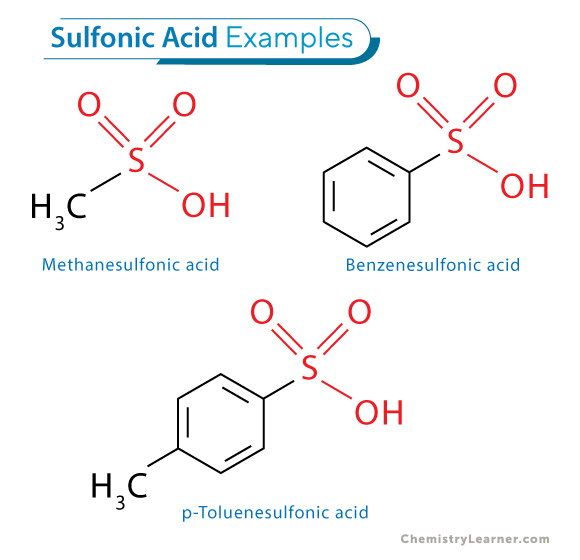

Examples [5,6]
| Name | Chemical Formula | Physical Appearance | pKa at 25°C | Main Uses |
|---|---|---|---|---|
| Methanesulfonic acid | CH3SO3H | Colorless liquid | ≈ -1.9 | Catalyst, solvent, electrolyte, cleaning agent in various industrial processes |
| Benzenesulfonic acid | C6H5SO3H | Colorless crystalline solid or viscous liquid | ≈ -2.8 | Catalyst, precursor for organic synthesis, dopant for conducting polymers |
| p-Toluenesulfonic acid | p-CH3C6H4SO3H | White crystalline solid | ≈ -1.3 to -2.8 | Catalyst in organic reactions, synthesis of sulfonates |
Preparation
Sulfonic acids are usually made through a process called sulfonation, where an aromatic compound (arene) reacts with sulfur trioxide (SO3). In this process, SO3 acts as the electrophile, while the aromatic ring serves as the nucleophile. The reaction proceeds through an electrophilic aromatic substitution (EAS) mechanism, where the electrophile attacks the π-electron-rich aromatic ring, replacing one of its hydrogen atoms with a sulfonic acid group (–SO3H). [7]
A common industrial example is the production of alkylbenzenesulfonic acids, where an alkyl-substituted benzene reacts with sulfur trioxide as follows:
RC6H5 + SO3 → RC6H4SO3H
This method is widely used for synthesizing various aryl sulfonic acids on a commercial scale. For example, p-toluenesulfonic acid is prepared on an industrial scale by the sulfonation of toluene:
CH3C6H5 + SO3 → CH3C6H4SO3H
Derivatives of Sulfonic Acid
Two major classes of sulfonic acid derivatives are sulfonate salts and sulfonate esters, both formed by replacing the acidic hydrogen atom of the –SO3H group. [8]
1. Sulfonate Salts
Sulfonate salts form when sulfonic acids react with bases, neutralizing the acidic –OH group to yield ionic compounds with the general formula R–SO3– M+, where M+ is a metal cation such as sodium (Na+) or potassium (K+).
These salts are typically white, crystalline solids that are highly soluble in water due to their ionic nature. Their strong polarity and ability to interact with water make them vital in the production of detergents and surfactants, where they help reduce surface tension and enhance cleaning or separation processes.
A well-known example is sodium dodecylbenzene sulfonate (SDBS), a widely used anionic surfactant known for its detergency, foaming, emulsifying, and dispersing properties.
2. Sulfonate Esters
Sulfonate esters are formed when the acidic hydrogen of a sulfonic acid is replaced by an alkyl or aryl group (R’), resulting in compounds with the general formula R–SO3–R’.
These compounds are especially valuable in organic synthesis, where they serve as excellent leaving groups in nucleophilic substitution reactions, particularly when the R group is electron-withdrawing.
For example, methyl trifluoromethanesulfonate (CF3SO2OCH3) is a colorless liquid widely used as a powerful methylating agent in organic reactions.
