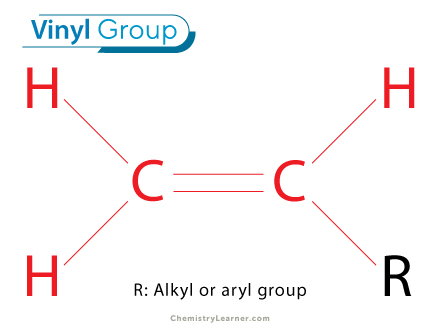

The vinyl group (–CH=CH2) is an unsaturated hydrocarbon fragment containing a carbon–carbon double bond. It can be seen as an ethene molecule with one hydrogen atom replaced by another atom or group. Vinyl compounds are represented by the general formula R–CH=CH2, where R denotes any substituent such as an alkyl, aryl, halide, or functional group. [1-4]
Vinyl groups are key structural units in various synthetic and industrial materials, including polyvinyl chloride (PVC), polyvinyl acetate (PVA), and styrene-based polymers. These materials are formed through polymerization, a process that links many vinyl monomers together to create long-chain polymers. Owing to their strength, flexibility, and chemical resistance, vinyl-based polymers are extensively used in packaging, construction, coatings, and textiles.
Structure and Bonding
The vinyl group (–CH=CH2) contains a carbon–carbon double bond (C=C). One carbon atom connects to two hydrogen atoms. In contrast, the other carbon bonds to one hydrogen and an organic group or moiety. This arrangement makes vinyl a terminal alkenyl group, as the double bond appears at the end of the carbon chain. [1-4]
Each carbon atom in the vinyl group is sp2-hybridized, forming three sigma (σ) bonds in a planar arrangement with bond angles of about 120°. The unhybridized p orbitals on the two carbon atoms overlap side-to-side to form a pi (π) bond, which restricts rotation around the double bond and gives the vinyl group its characteristic planar shape and rigidity.

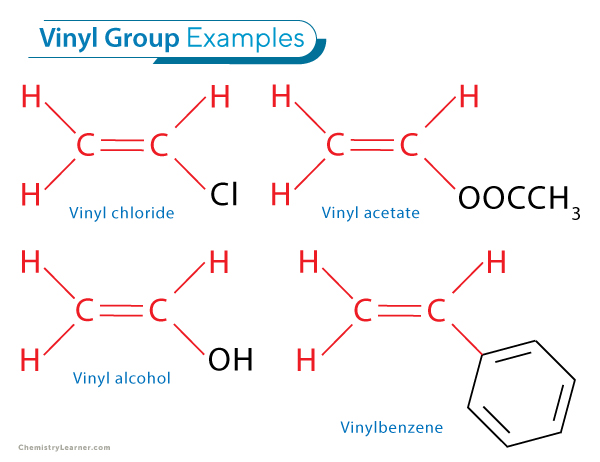

Common Vinyl Compounds and Their Uses [5]
| Compound | Formula | Major Use |
|---|---|---|
| Vinyl chloride | CH2=CHCl | Used in the production of PVC pipes, cables, and flooring materials |
| Vinyl acetate | CH2=CHOCOCH3 | Serves as a precursor for polyvinyl acetate, which is used in adhesives and paints |
| Styrene (vinylbenzene) | CH2=CHC6H5 | Used to make polystyrene, a lightweight plastic for packaging and insulation |
| Vinyl alcohol | CH2=CHOH | Tautomerizes to acetaldehyde since it is very unstable |
Preparation of Vinyl Compounds [6]
1. Dehydrohalogenation of Alkyl Halides
Vinyl compounds are prepared by removing a hydrogen halide (HX) from an alkyl halide (RX). When an alkyl halide reacts with a strong base such as alcoholic potassium hydroxide (KOH) in the presence of heat, a double bond forms between two carbon atoms. This E2 elimination reaction, known as dehydrohalogenation, is commonly used to produce alkenes and vinyl derivatives.
For example, ethyl chloride converts to ethene, the simplest vinyl compound.
CH3CH2Cl → CH2=CH2 + HCl (in presence of KOH, EtOH, and heat)
2. Dehydration of Alcohols
Vinyl compounds can also be synthesized by removing water (H2O) from an alcohol. This dehydration process typically occurs by heating the alcohol with a strong acid such as concentrated sulfuric acid (H2SO4). The reaction results in the formation of a carbon–carbon double bond.
For example, ethanol undergoes dehydration to form ethene.
CH3CH2OH → CH2=CH2 + H2O (in presence of H2SO4 and heat)
3. Addition Reactions to Alkynes
Vinyl compounds can also be obtained from alkynes, which contain a carbon–carbon triple bond (C≡C). When an alkyne reacts with one molecule of a reagent such as a hydrogen halide (HX) or halogen (X2), only one of the two π bonds is broken, resulting in a vinyl compound instead of a fully saturated product.
For example, acetylene reacts with hydrogen chloride to form vinyl chloride.
CH≡CH + HCl → CH2=CHCl (in presence of HgCl2)
By controlling the reaction conditions, such as temperature and the mercuric chloride catalyst, the addition can be stopped at the vinyl stage, preventing complete saturation of the molecule.
The vinyl group is one of the most vital alkenyl functional groups in organic chemistry. Its ability to form polymers and reactive intermediates makes it a cornerstone of modern materials science, contributing to the production of versatile materials ranging from household plastics to industrial coatings.
